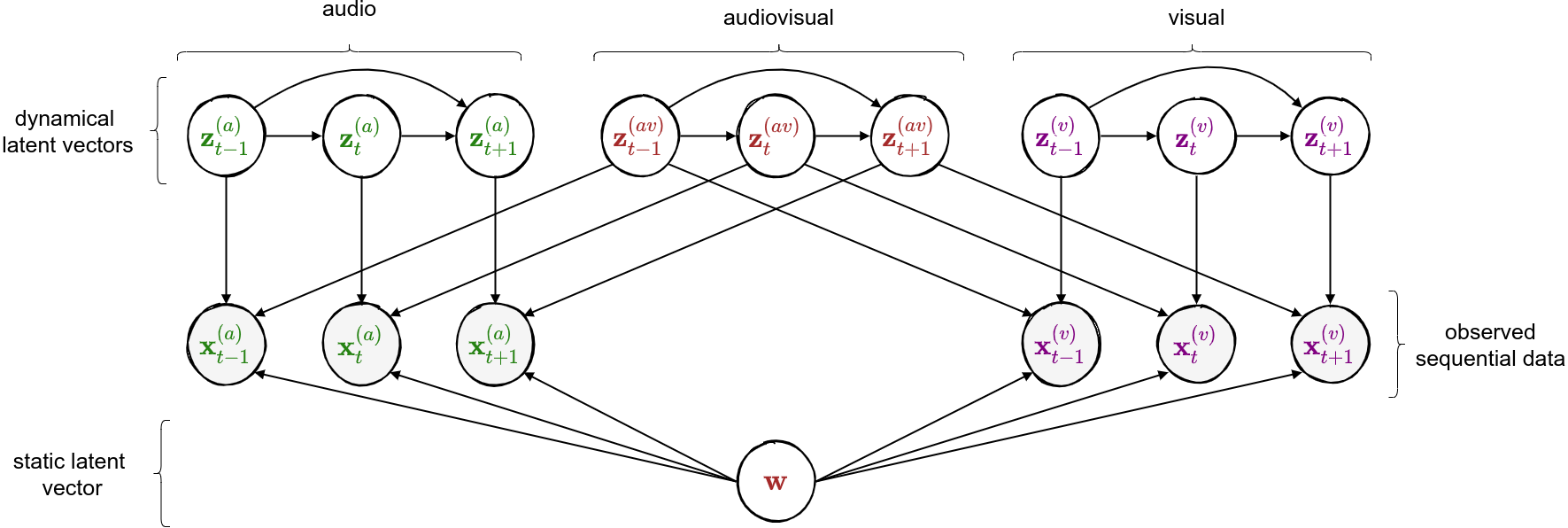

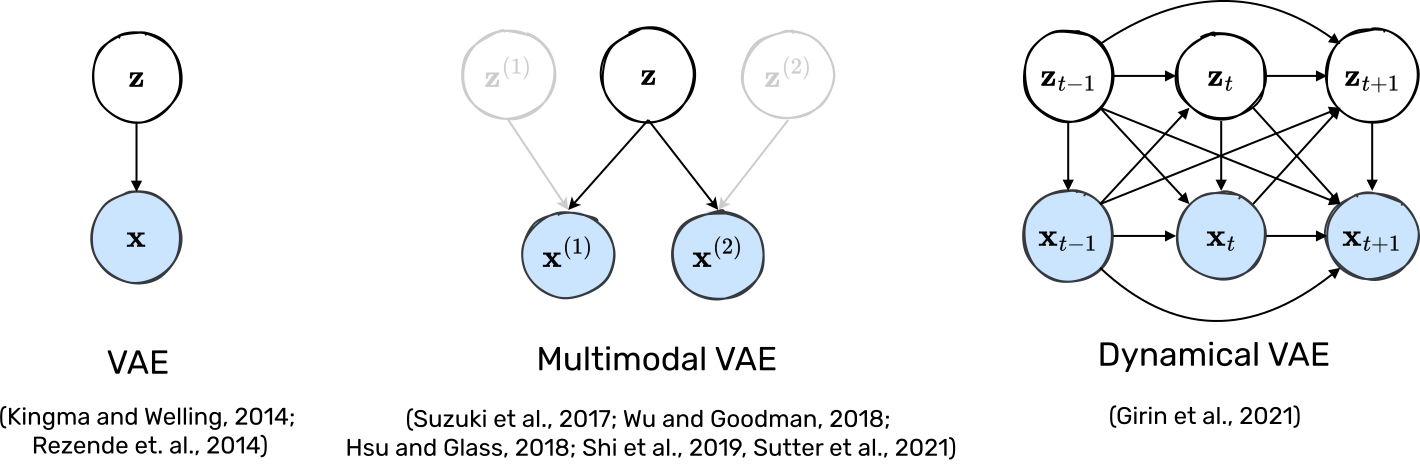

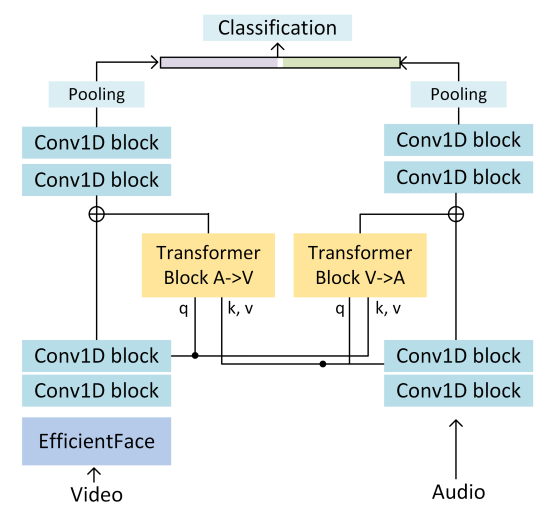

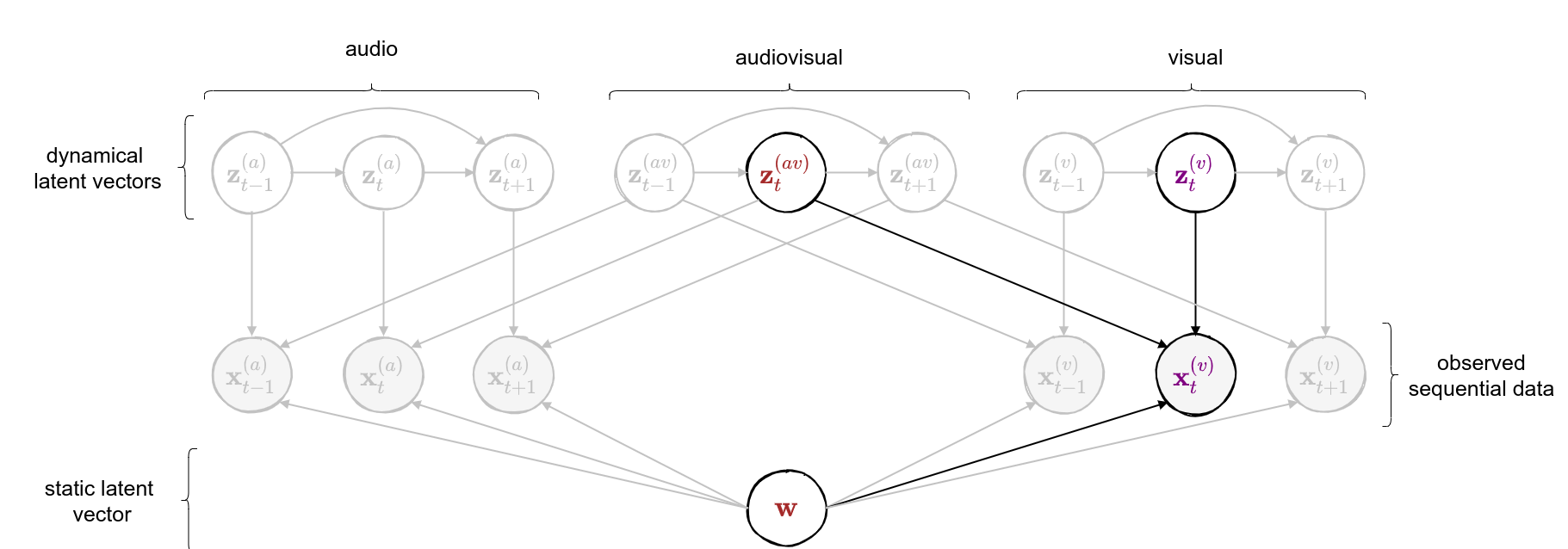

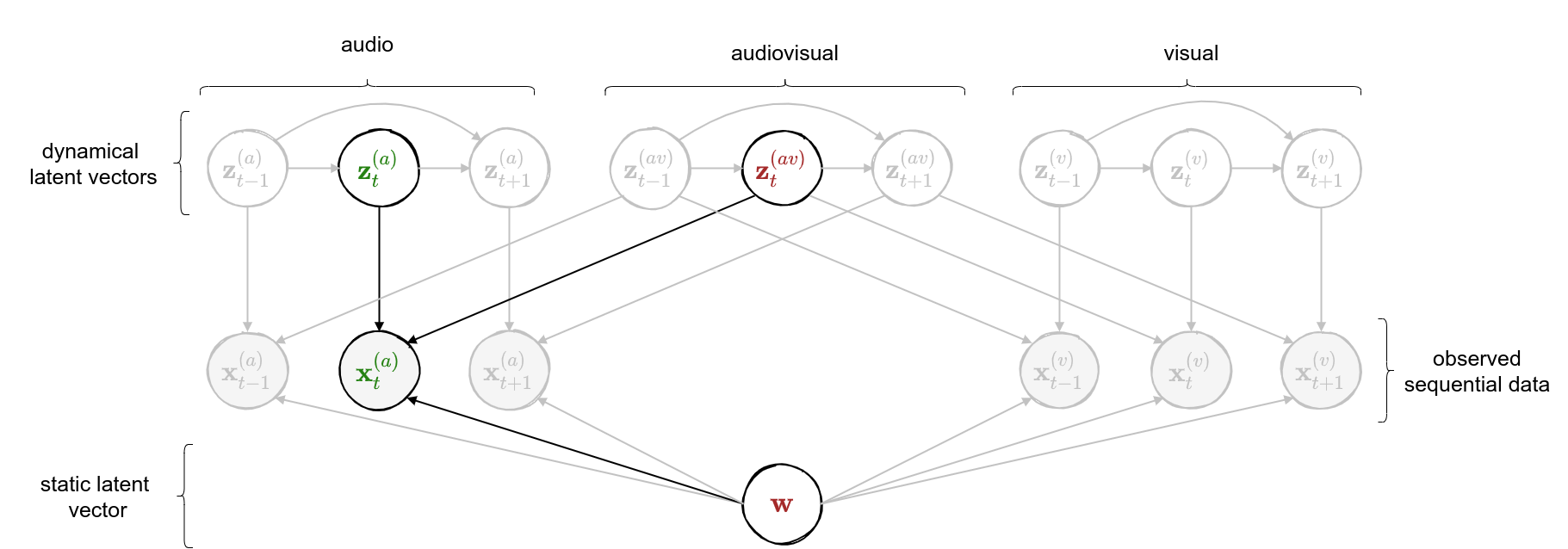

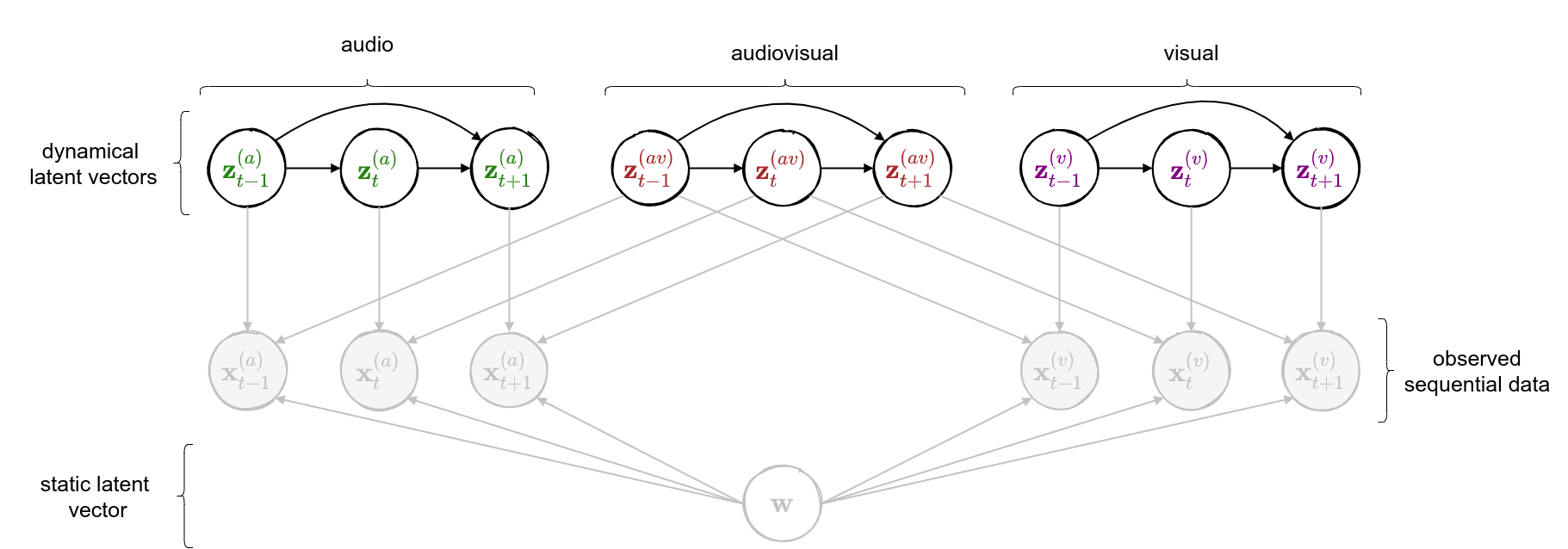

class: middle, center <!--- https://katex.org/docs/supported.html#macros ---> $$ \global\def\myx#1{{\color{green}\mathbf{x}\_{#1}}} $$ $$ \global\def\myxa#1{{\color{green}\mathbf{x}\_{#1}^{(a)}}} $$ $$ \global\def\myza#1{{\color{green}\mathbf{z}\_{#1}^{(a)}}} $$ $$ \global\def\myxv#1{{\color{purple}\mathbf{x}\_{#1}^{(v)}}} $$ $$ \global\def\myzv#1{{\color{purple}\mathbf{z}\_{#1}^{(v)}}} $$ $$ \global\def\myzav#1{{\color{brown}\mathbf{z}\_{#1}^{(av)}}} $$ $$ \global\def\myzds#1{{\color{brown}\mathbf{z}\_{#1}^{(av)}}} $$ $$ \global\def\mywav{{\color{brown}\mathbf{w}^{(av)}}} $$ $$ \global\def\myw{{\color{brown}\mathbf{w}}} $$ $$ \global\def\mys#1{{\color{green}\mathbf{s}\_{#1}}} $$ $$ \global\def\myS#1{{\color{green}\mathbf{S}\_{#1}}} $$ $$ \global\def\myz#1{{\color{brown}\mathbf{z}\_{#1}}} $$ $$ \global\def\myztilde#1{{\color{brown}\tilde{\mathbf{z}}\_{#1}}} $$ $$ \global\def\myhnmf#1{{\color{brown}\mathbf{h}\_{#1}}} $$ $$ \global\def\myztilde#1{{\color{brown}\tilde{\mathbf{z}}\_{#1}}} $$ $$ \global\def\myu#1{\mathbf{u}\_{#1}} $$ $$ \global\def\mya#1{\mathbf{a}\_{#1}} $$ $$ \global\def\myv#1{\mathbf{v}\_{#1}} $$ $$ \global\def\mythetaz{\theta\_\myz{}} $$ $$ \global\def\mythetax{\theta\_\myx{}} $$ $$ \global\def\mythetas{\theta\_\mys{}} $$ $$ \global\def\mythetaa{\theta\_\mya{}} $$ $$ \global\def\bs#1{{\boldsymbol{#1}}} $$ $$ \global\def\diag{\text{diag}} $$ $$ \global\def\mbf{\mathbf} $$ $$ \global\def\myh#1{{\color{purple}\mbf{h}\_{#1}}} $$ $$ \global\def\myhfw#1{{\color{purple}\overrightarrow{\mbf{h}}\_{#1}}} $$ $$ \global\def\myhbw#1{{\color{purple}\overleftarrow{\mbf{h}}\_{#1}}} $$ $$ \global\def\myg#1{{\color{purple}\mbf{g}\_{#1}}} $$ $$ \global\def\mygfw#1{{\color{purple}\overrightarrow{\mbf{g}}\_{#1}}} $$ $$ \global\def\mygbw#1{{\color{purple}\overleftarrow{\mbf{g}}\_{#1}}} $$ $$ \global\def\neq{\mathrel{\char`≠}} $$ .vspace[ ] # Low-dimensional generative modeling of <br>multimodal sequential data .small-vspace[ ] ### Applications to audiovisual speech processing .small-vspace[ ] .center[Simon Leglaive] .small.center[CentraleSupélec, IETR (UMR CNRS 6164), France] .small-vspace[ ] .center.small[.underline[Collaborators]: Xavier Alameda-Pineda, Guénolé Fiche, Laurent Girin, Radu Horaud,<br> Francesc Moreno-Noguer, Samir Sadok, Renaud Séguier.] .center.width-7[] .grid[ .kol-1-6[ .left.width-120[] ] .kol-2-3[ .small.center[Universität Hamburg - September 11, 2025] ] .kol-1-6[ .right.width-65[]] ] --- class: middle count: false ## .bold[Outline] <h3> 1. Low-dimensional generative modeling... </h3> - The variational autoencoder (VAE). - A rapid overview of 3 contributions around the VAE. <h3> 2. ... of multimodal sequential data </h3> - The multimodal dynamical VAE (MDVAE). - Applications to audiovisual speech processing. .vspace[ ] .center.bold[Feel free to ask questions at any time!] --- class: middle ## Low-dimensional modeling of high-dimensional structured data .center.width-90[] **High-dimensional data** $\myx{} \in \mathbb{R}^d$ such as 3D human meshes, natural images, or speech signals exhibit some form of **structure**, preventing their dimensions from varying independently. - From a **geometric perspective**, this regularity suggests that the high-dimensional data actually live in a much lower-dimensional manifold. - From a **generative perspective**, it suggests that there exists a smaller dimensional **latent variable** $\myz{} \in \mathbb{R}^\ell$ that generated $\myx{} \in \mathbb{R}^d$, $\ell \ll d$. .credit[Picture credits: <a href="https://fr.freepik.com/photos-gratuite/heureuse-fille-aux-cheveux-boucles-fait-signe-pouce-air-demontre-son-soutien-son-respect-quelqu-sourit-agreablement-atteint-objectif-souhaitable-porte-t-shirt-blanc-isole-mur-jaune_11932454.htm#query=black%20woman%20face&position=2&from_view=search">wayhomestudio</a> on Freepik. ] --- class: middle ## Latent-variable generative modeling .small-vspace[ ] .center.width-90[] <!-- $$ \hspace{1cm} \underbrace{p\_\theta(\myx{}) = \int p\_\theta(\myx{} |\myz{}) p(\myz{}) d\myz{}}\_{\text{model distribution}} \hspace{.25cm} \approx \hspace{-.5cm} \underbrace{\vphantom{\int}p^{\star}(\myx{})}\_{\text{true data distribution}} $$ --> - Generative modeling consists of estimating the parameters $\theta$ so that $p\_\theta(\myx{}) \approx p^\star(\myx{})$ according to some measure of fit, for instance the Kullback-Leibler (KL) divergence. - When the model includes a deep neural network, we obtain a **deep generative model**. --- class: middle ## The variational autoencoder (VAE) .tiny[(Kingma and Welling, 2014; Rezende et. al., 2014)] .grid[ .kol-1-2[ - .underline[Prior]: $\qquad p(\myz{}) = \mathcal{N}(\myz{}; \mathbf{0}, \mathbf{I})$ - .underline[Generative model]: $ p\_\theta(\myx{} | \myz{}) = \mathcal{N}\left( \myx{}; \boldsymbol{\mu}\_\theta(\myz{}), \boldsymbol{\Sigma}\_\theta(\myz{}) \right) $ .small[where] $\small \boldsymbol{\mu}\_\theta(\myz{}), \boldsymbol{\Sigma}\_\theta(\myz{})$ .small[are the outputs of the **decoder**.] - .underline[Inference model]: $ q\_\phi(\myz{} | \myx{}) = \mathcal{N}\left( \myz{}; \boldsymbol{\mu}\_\phi(\myx{}), \boldsymbol{\Sigma}\_\phi(\myx{}) \right) \\\\$ .small[where] $\small \boldsymbol{\mu}\_\phi(\myx{}), \boldsymbol{\Sigma}\_\phi(\myx{})$ .small[are the outputs of the **encoder**.] ] .kol-1-2[ .vspace[ ] .center.width-90[] ] ] .small-nvspace[ ] .credit[ .vpsace[ ] D.P. Kingma and M. Welling (2014). Auto-encoding variational Bayes. ICLR. <br> D.J. Rezende, S. Mohamed, D. Wierstra, (2014).Stochastic backpropagation and approximate inference in deep generative models. ICML. ] --- class: middle ## VAE objective The VAE parameters are estimated by maximizing the **evidence lower bound** (ELBO) .small[(Neal and Hinton, 1999; Jordan et al. 1999)] defined by: $$\begin{aligned} \mathcal{L}(\phi, \theta) &= \underbrace{\mathbb{E}\_{q\_\phi(\myz{} | \myx{})} [\ln p\_\theta(\myx{} | \myz{})]}\_{\text{reconstruction accuracy}} - \underbrace{D\_{\text{KL}}(q\_\phi(\myz{} | \myx{}) \parallel p(\myz{}))}\_{\text{regularization}}. \end{aligned} $$ The ELBO can also be decomposed as: $$\begin{aligned} \mathcal{L}(\phi, \theta) &= \ln p\_\theta(\myx{}) - D\_{\text{KL}}(q\_\phi(\myz{} | \myx{}) \parallel p\_\theta(\myz{} | \myx{})). \end{aligned} $$ .alert[ <div style="margin-top: -0.3cm;"></div> .left-column[ .underline[Generative model parameters estimation] $$ \underset{\theta}{\max}\, \Big\\{ \mathcal{L}(\phi, \theta) \le \ln p\_\theta(\myx{}) \Big\\} $$ ] .right-column[ .underline[Inference model parameters estimation] $$ \underset{\phi}{\max}\, \mathcal{L}(\phi, \theta) \,\,\Leftrightarrow\,\, \underset{\phi}{\min}\, D\_{\text{KL}}(q\_\phi(\myz{} | \myx{}) \parallel p\_\theta(\myz{} | \myx{}))$$ ] .reset-column[ ] <div style="margin-top: -0.3cm;"></div> ] .credit[ R.M. Neal and G.E. Hinton (1999). A view of the EM algorithm that justifies incremental, sparse, and other variants. In M. I. Jordan (Ed.), .italic[Learning in graphical models]. <br> M.I. Jordan, Z. Ghahramani, T.S. Jaakkola, L.K. Saul (1999). An introduction to variational methods for graphical models. Machine Learning. 1999. ] --- ## One model, many tasks We can use a pre-trained VAE for several different tasks. .center.width-80[] --- ## Generation task How to generate new data samples? .center.width-80[] --- ## Decoder-based downstream task How to infer the latent variables given auxiliary signals? .center.width-80[] --- ## Transformation task How to disentangle, interpret, and control the latent representation? .center.width-80[] .credit[I. Higgins, D. Amos, D. Pfau, S. Racaniere, L. Matthey, D. Rezende, A. Lerchner (2018). Towards a definition of disentangled representations. arXiv preprint arXiv:1812.02230.] --- ## Encoder-based downstream task How to build sample-efficient, robust, and generalizable information extraction systems? .center.width-80[] .credit[S. van Steenkiste, F. Locatello, J. Schmidhuber, O. Bachem. Are disentangled representations helpful for abstract visual reasoning?, NeurIPS, 2019.] --- class: middle, center 3 examples of transformation and decoder-based downstream tasks. --- ## Transformation task example ### Source-filter VAE .small[(Sadok et al., 2023)] .center.width-70[] - We want to analyze the structure of the latent space of a VAE pretrained on short-term speech power spectra. .credit[ S. Sadok, S. Leglaive, L. Girin, X. Alameda-Pineda, R. Séguier (2023). Learning and controlling the source-filter representation of speech with a variational autoencoder. Speech Communication. ] --- count:false ## Transformation task example ### Source-filter VAE .small[(Sadok et al., 2023)] .center.width-95[] - We take the perspective of the **source filter-model of speech production** proposed by Fant .small[(1970)]. - The production of speech results from the interaction of a source with a time-varying filter. - Assumption: We can control the source and the filter independently from each other. - Important parameters are the **fundamental frequency** and the **formant frequencies**. .credit[ S. Sadok, S. Leglaive, L. Girin, X. Alameda-Pineda, R. Séguier (2023). Learning and controlling the source-filter representation of speech with a variational autoencoder. Speech Communication. G. Fant (1970). Acoustic theory of speech production. 2. Walter de Gruyter. ] --- ## Transformation task example ### Source-filter VAE .small[(Sadok et al., 2023)] .center.width-60[] - We want to study how the fundamental and formant frequencies are encoded within the VAE latent space. - We generate short synthetic speech signals with one single attribute varying at a time. --- ## Transformation task example ### Source-filter VAE .small[(Sadok et al., 2023)] .center.width-95[] - Each sequence of short-term speech power spectra is encoded by the pretrained VAE encoder. - We obtain a sequence of 16-dimensional latent vectors. - Intuition: Because only one attribute varies, we expect the latent vectors to live in a lower-dimensional manifold of the original latent space. --- ## Transformation task example ### Source-filter VAE .small[(Sadok et al., 2023)] .center.width-95[] - Indeed, we can learn an "invertible" mapping between the VAE latent space and a linear subspace of lower dimension while retaining most of the data variance. --- ## Transformation task example ### Source-filter VAE .small[(Sadok et al., 2023)] .center.width-95[] - The subspaces for different attributes are orthogonal between each other, as can be verified by simply computing the dot product between the vectors that span each subspace. - The latent representation learned by the VAE is consistent with the source-filter model. - It suggests that we could manipulate one attribute in its latent subspace without affecting the others, similarly as how humans produce speech according to the source-filter model. --- ## Transformation task example ### Source-filter VAE .small[(Sadok et al., 2023)] .center.width-95[] - Using only our few-seconds of artificial and automatically-labeled speech data, we learned to regress from the speech attribute to a specific position in the corresponding subspace. - This allows us to perform disentangled speech manipulations by moving into the latent subspaces, with a simple translation. --- class: middle ## Transformation task example ### Source-filter VAE .small[(Sadok et al., 2023)] .center.width-80[] .alert[We can generate / transform speech spectrograms given input trajectories of the fundamental and formant frequencies.] --- ## Decoder-based downstream task example ### Unsupervised speech enhancement .small[(Bando et al., 2018; Leglaive et al., 2018)] .center.width-80[] .medium[ - Given a VAE pretrained on clean speech, the speech enhancement task consists of **inferring the VAE latent variables given a noisy speech recording**. - Approximate posterior inference using Markov chain Monte Carlo .small[(Bando et al., 2018; Leglaive et al., 2018)] or variational inference .small[(Leglaive et al., 2020)]. - Test-time iterative optimization: good in terms of adaptation but slow and performance limited compared to supervised methods on in-domain data. ] .credit[ Y. Bando, M. Mimura, K. Itoyama, K. Yoshii, T. Kawahara (2018). Statistical speech enhancement based on probabilistic integration of variational autoencoder and non-negative matrix factorization. IEEE ICASSP. <br> S. Leglaive, L. Girin, R. Horaud (2018). A variance modeling framework based on variational autoencoders for speech enhancement. IEEE MLSP. <br> S. Leglaive, X. Alameda-Pineda, L. Girin, R. Horaud (2020). A Recurrent Variational Autoencoder for Speech Enhancement. IEEE ICASSP. ] --- .grid[ .kol-1-3.center[ <img src="audio/speech_enhancement/3-0-mix.svg", width=75%> .small-nvspace[ ] <audio controls src="audio/speech_enhancement/3-0-mix.wav"></audio> .center.small[Mixture] ] .kol-1-3.center[ <img src="audio/speech_enhancement/3-0-RVAE-BRNN-VEM.svg", width=75%> .small-nvspace[ ] <audio controls src="audio/speech_enhancement/3-0-RVAE-BRNN-VEM.wav"></audio> .center.small[RVAE VEM (Leglaive et al., 2020)] ] .kol-1-3.center[ <img src="audio/speech_enhancement/3-0-SEMamba-VB-DMD.svg", width=71%> .small-nvspace[ ] <audio controls src="audio/speech_enhancement/3-0-SEMamba-VB-DMD.wav"></audio> .center.small[SEMamba (Chao et al., 2024)] ] ] .small-nvspace[ ] .grid[ .kol-1-3.center[ <img src="audio/speech_enhancement/matmatah-mix.svg", width=75%> .small-nvspace[ ] <audio controls src="audio/speech_enhancement/matmatah-mix.wav"></audio> .center.small[Mixture] ] .kol-1-3.center[ <img src="audio/speech_enhancement/matmatah-BRNN-VEM-voice.svg", width=75%> .small-nvspace[ ] <audio controls src="audio/speech_enhancement/matmatah-BRNN-VEM-voice.wav"></audio> .center.small[RVAE VEM (Leglaive et al., 2020)] ] .kol-1-3.center[ <img src="audio/speech_enhancement/matmatah-SEMamba-VB-DMD-voice.svg", width=71%> .small-nvspace[ ] <audio controls src="audio/speech_enhancement/matmatah-SEMamba-VB-DMD-voice.wav"></audio> .center.small[SEMamba (Chao et al., 2024)] ] ] .credit[ R. Chao, W.-H. Cheng, M. La Quatra, S. M. Siniscalchi, C.-H. H. Yang, S.-W. Fu, Y. Tsao (2024). An investigation of incorporating Mamba for speech enhancement. IEEE SLT. <br> https://huggingface.co/spaces/rc19477/Speech_Enhancement_Mamba ] --- ## Decoder-based downstream task example ### Masked generative human mesh recovery (HMR) .small[(Fiche et al., 2025)] .grid[ .kol-1-2[ .width-100[] ] .kol-1-2[ .tiny-vspace[ ] <video controls width="100%" loop autoplay muted> <source src="images/MEGA_multi_hor.mp4" type="video/mp4"> </video> ] ] .medium[ - **HMR is an ill-posed problem**: There exists an infinity of 3D human meshes that can explain equally well the 2D observation. - We account for this ambiguity by designing the inference model as a **conditional masked generative model**. - We can obtain the **most likely output** by computing the argmax of the conditional distribution, or generate **multiple plausible outputs** by stochastic sampling. ] .credit[ G. Fiche, S. Leglaive, X. Alameda-Pineda, F. Moreno-Noguer (2025). MEGA: Masked generative autoencoder for human mesh recovery. IEEE/CVF CVPR. ] --- class: middle, center The variance of the predictions can be interpreted as a measure of **uncertainty**. .center.width-100[] --- class: center, middle Underlying these downstream tasks are fundamental questions concerning the **design of the VAE generative and inference models themselves**, particularly in terms of **probabilistic modeling** and neural network **architectures** that should be well aligned with the **structure of the data**. In the rest of this presentation we will focus on **multimodal and sequential data**. --- class: middle .grid[ .kol-2-3[ ## Multimodality - Different modalities provide complementary information. - Multimodality is useful for the **perception** and the **analysis of humans** using **signal processing** and **machine learning**: - Visual modality is **robust** to acoustic noise .small[(useful for speech enhancement, ASR, etc.)]; - Audio modality is **robust** to occlusion and lighting conditions .small[(useful for person identification, etc.)]; - Some phenomena or tasks are **ambiguous** when perceived or addressed through a single modality <br>.small[(e.g., emotional expressions, visemes, speech extraction, etc.)] .alert[Multimodality provides robustness and helps disambiguation.] ] .kol-1-3[.center.width-60[] ] ] .reset-column[ ] .credit.pull-right[Picture credits: <a href="https://fr.freepik.com/photos-gratuite/heureuse-fille-aux-cheveux-boucles-fait-signe-pouce-air-demontre-son-soutien-son-respect-quelqu-sourit-agreablement-atteint-objectif-souhaitable-porte-t-shirt-blanc-isole-mur-jaune_11932454.htm#query=black%20woman%20face&position=2&from_view=search">wayhomestudio</a> on Freepik.] --- ## VAEs for multimodal and sequential data .center.width-80[] - The VAE has been extended in many ways, including for processing multimodal **or** sequential data. - But a model for both multimodal and sequential data was lacking. .credit[ .vspace[ ] L. Girin, S. Leglaive, X. Bie, J. Diard, T. Hueber, X. Alameda-Pineda (2021). Dynamical variational autoencoders: A comprehensive review. Foundations and Trends in Machine Learning. <br> M. Suzuki, K. Nakayama, Y. Matsuo (2017). Joint multimodal learning with deep denerative models. ICLR Workshop. <br> M. Wu and N. Goodman (2018). Multimodal generative models for scalable weakly-supervised learning. NeurIPS. <br> W.-N. Hsu and J. R. Glass (2018). Disentangling by partitioning: A representation learning framework for multimodal sensory data. arXiv preprint arXiv:1805.11264. <br> Y. Shi, N. Siddharth, B. Paige, P. Torr (2019). Variational mixture-of-experts autoencoders for multi-modal deep denerative models. NeurIPS. <br> T. Sutter, I. Daunhawer, J. E. Vogt (2021). Generalized Multimodal ELBO. ICLR. ] --- class: middle, center In .small[(Sadok et al., 2024)] we proposed MDVAE, a multimodal **and** dynamical VAE applied to audiovisual speech representation learning. .credit[ S. Sadok, S. Leglaive, L. Girin, X. Alameda-Pineda, R. Séguier (2024). A multimodal dynamical variational autoencoder for audiovisual speech representation learning. Neural Networks. ] --- class: middle count: false .center[ # Multimodal dynamical VAE (MDVAE) ] <br> - .bold[Generative model] - Inference model - Training --- ## Expressive audiovisual speech generative process .grid[ .kol-1-2[ .underline[**Observed** audiovisual speech data:] - <font color="#258212">Audio</font>: $\hspace{1cm} \myxa{} \in \mathbb{R}^{d\_a \times T}$ - <font color="#800080">Visual</font>: $\hspace{.98cm} \myxv{} \in \mathbb{R}^{d\_v \times T}$ .center[ <video controls width="400"> <source src="videos/W016_happy_level2_004.mp4" type="video/mp4"> </video> ] ] .kol-1-2[ .underline[**Latent** variables:] - Static, <font color="brown">audiovisual</font>: $\hspace{1.2cm}\myw \in \mathbb{R}^{\ell\_w}$ <br> .small[(e.g., speaker's identity and global emotional state)] - Dynamical, <font color="brown">audiovisual</font>: $\hspace{.65cm}\myzav{} \in \mathbb{R}^{\ell\_{av} \times T}$ <br> .small[(e.g., lip movements, phonemic information (part of))] - Dynamical, <font color="#800080">visual</font>: $\hspace{1.4cm}\myzv{} \in \mathbb{R}^{\ell\_v \times T}$ <br> .small[(e.g., other facial movements and head pose)] - Dynamical, <font color="#258212">audio</font>: $\hspace{1.45cm}\myza{} \in \mathbb{R}^{\ell\_a \times T}$ <br> .small[(e.g., pitch variations, phonemic information (part of))] ] ] .alert[We want to decompose / generate audiovisual speech into / from these latent factors, without supervision.] .credit[Video credits: K. Wang et al., MEAD: A large-scale audio-visual dataset for emotional talking-face generation, ECCV, 2020.] --- class: middle ## MDVAE generative model .center.width-80[] - MDVAE generative model is defined as a **Bayesian network** .small[(Peal, 1985)]. - It corresponds to a **factorization of the joint distribution** $ p\_\theta\left(\myxa{}, \myxv{}, \myzav{},\myza{},\myzv{}, \myw{}\right).$ - By **defining "appropriate" probabilistic dependencies** between the variables we will learn the desired disentangled representation of audiovisual speech, **without supervision**. - Let's go over each term involved in the factorization. .credit[J. Peal (1985). Bayesian networks: A model of self-activated memory for evidential reasoning. In Proceedings of the Annual Meeting of the Cognitive Science Society (Vol. 7).] --- class: middle count:false .center.width-100[] $$ \hspace{-.5cm} \small \boxed{p\_\theta\left(\myxa{} \mid \myzav{},\myza{},\myw{}\right) = \prod\_{t=1}^T p\_\theta\left(\myxa{t} \mid \myzav{t},\myza{t},\myw{}\right)}, \hspace{.3cm} p\_\theta\left(\myxv{} \mid \myzav{},\myzv{},\myw{}\right) = \prod\_{t=1}^T p\_\theta\left(\myxv{t} \mid \myzav{t},\myzv{t},\myw{}\right) $$ $$ \hspace{-.5cm} \small p\_\theta\left(\myza{}\right) = \prod\_{t=1}^T p\_\theta\left(\myza{t} \mid \myza{1:t-1} \right), \hspace{.3cm} p\_\theta\left(\myzav{}\right) = \prod\_{t=1}^T p\_\theta\left(\myzav{t} \mid \myzav{1:t-1} \right), \hspace{.3cm} p\_\theta\left(\myzv{}\right) = \prod\_{t=1}^T p\_\theta\left(\myzv{t} \mid \myzv{1:t-1} \right) $$ --- class: middle count: false .center.width-100[] $$ \hspace{-.5cm} \small p\_\theta\left(\myxa{} \mid \myzav{},\myza{},\myw{}\right) = \prod\_{t=1}^T p\_\theta\left(\myxa{t} \mid \myzav{t},\myza{t},\myw{}\right), \hspace{.3cm} \boxed{p\_\theta\left(\myxv{} \mid \myzav{},\myzv{},\myw{}\right) = \prod\_{t=1}^T p\_\theta\left(\myxv{t} \mid \myzav{t},\myzv{t},\myw{}\right)} $$ $$ \hspace{-.5cm} \small p\_\theta\left(\myza{}\right) = \prod\_{t=1}^T p\_\theta\left(\myza{t} \mid \myza{1:t-1} \right), \hspace{.3cm} p\_\theta\left(\myzav{}\right) = \prod\_{t=1}^T p\_\theta\left(\myzav{t} \mid \myzav{1:t-1} \right), \hspace{.3cm} p\_\theta\left(\myzv{}\right) = \prod\_{t=1}^T p\_\theta\left(\myzv{t} \mid \myzv{1:t-1} \right) $$ --- class: middle count: false .center.width-100[] $$ \hspace{-.5cm} \small p\_\theta\left(\myxa{} \mid \myzav{},\myza{},\myw{}\right) = \prod\_{t=1}^T p\_\theta\left(\myxa{t} \mid \myzav{t},\myza{t},\myw{}\right), \hspace{.3cm} p\_\theta\left(\myxv{} \mid \myzav{},\myzv{},\myw{}\right) = \prod\_{t=1}^T p\_\theta\left(\myxv{t} \mid \myzav{t},\myzv{t},\myw{}\right) $$ $$ \hspace{-.5cm} \small \boxed{p\_\theta\left(\myza{}\right) = \prod\_{t=1}^T p\_\theta\left(\myza{t} \mid \myza{1:t-1} \right)}, \hspace{.3cm} \boxed{p\_\theta\left(\myzav{}\right) = \prod\_{t=1}^T p\_\theta\left(\myzav{t} \mid \myzav{1:t-1} \right)}, \hspace{.3cm} \boxed{p\_\theta\left(\myzv{}\right) = \prod\_{t=1}^T p\_\theta\left(\myzv{t} \mid \myzv{1:t-1} \right)} $$ --- exclude: true class: middle Important remark: - The variables $\myxa{t}$ and $\myxv{t}$ are considered conditionally independent over time, but they are not marginally independent thanks to the autoregressive prior model. - Said differently, the autoregressive model over the latent variables induces the temporal dynamics over the observed audio and visual speech variables. .vspace[ ] $$ \hspace{-.5cm} \small {p\_\theta\left(\myxa{} \mid \myzav{},\myza{},\myw{}\right) = \prod\_{t=1}^T p\_\theta\left(\myxa{t} \mid \myzav{t},\myza{t},\myw{}\right)}, \hspace{.3cm} p\_\theta\left(\myxv{} \mid \myzav{},\myzv{},\myw{}\right) = \prod\_{t=1}^T p\_\theta\left(\myxv{t} \mid \myzav{t},\myzv{t},\myw{}\right) $$ $$ \hspace{-.5cm} \small p\_\theta\left(\myza{}\right) = \prod\_{t=1}^T p\_\theta\left(\myza{t} \mid \myza{1:t-1} \right), \hspace{.3cm} p\_\theta\left(\myzav{}\right) = \prod\_{t=1}^T p\_\theta\left(\myzav{t} \mid \myzav{1:t-1} \right), \hspace{.3cm} p\_\theta\left(\myzv{}\right) = \prod\_{t=1}^T p\_\theta\left(\myzv{t} \mid \myzv{1:t-1} \right) $$ --- class: middle count: false .small-nvspace[ ] .center.width-100[] $$ \hspace{-.5cm} \small {p\_\theta\left(\myxa{} \mid \myzav{},\myza{},\myw{}\right) = \prod\_{t=1}^T p\_\theta\left(\myxa{t} \mid \myzav{t},\myza{t},\myw{}\right)}, \hspace{.3cm} p\_\theta\left(\myxv{} \mid \myzav{},\myzv{},\myw{}\right) = \prod\_{t=1}^T p\_\theta\left(\myxv{t} \mid \myzav{t},\myzv{t},\myw{}\right) $$ $$ \hspace{-.5cm} \small p\_\theta\left(\myza{}\right) = \prod\_{t=1}^T p\_\theta\left(\myza{t} \mid \myza{1:t-1} \right), \hspace{.3cm} p\_\theta\left(\myzav{}\right) = \prod\_{t=1}^T p\_\theta\left(\myzav{t} \mid \myzav{1:t-1} \right), \hspace{.3cm} p\_\theta\left(\myzv{}\right) = \prod\_{t=1}^T p\_\theta\left(\myzv{t} \mid \myzv{1:t-1} \right) $$ .medium[ All distributions are Gaussians parametrized by neural networks (MLPs or RNNs) and $ \small p(\myw{}) = \mathcal{N}(\myw{}; \mathbf{0}, \mathbf{I})$. ] --- class: middle count: false .center[ # Multimodal dynamical VAE (MDVAE) ] <br> - Generative model - .bold[Inference model] - Training --- class: middle ## MDVAE inference model - The inference model is an approximation of the intractable posterior. It defines **how we go from the observed audiovisual speech data to the latent variables**. - It can also be represented as a probabilistic graphical model, which corresponds to a factorization of the approximate posterior $$q\_\phi\left(\myzav{},\myza{},\myzv{}, \myw{} \mid \myxa{}, \myxv{}\right).$$ - This factorization is **not chosen but induced** by the generative model and conditional independence criteria following the principle of D-separation .small[(Geiger et al., 1990)]. .credit[ D. Geiger et al., Identifying independence in Bayesian networks, Networks, 1990. ] --- class: middle count: false .center.width-100[] The inference model $\small q\_\phi\left(\myzav{},\myza{},\myzv{}, \myw{} \mid \myxa{}, \myxv{}\right)$ decomposes as the product of four terms: $$\small \hspace{-.5cm} \boxed{ q\_\phi\left(\myw{} \mid \myxa{}, \myxv{}\right)} \times q\_\phi\left(\myzav{}\mid \myxa{}, \myxv{}, \myw{} \right) \times q\_\phi\left(\myza{} \mid \myxa{}, \myzav{}, \myw{}\right) \times q\_\phi\left(\myzv{} \mid \myxv{}, \myzav{}, \myw{}\right).$$ --- class: middle count: false .center.width-100[] The inference model $\small q\_\phi\left(\myzav{},\myza{},\myzv{}, \myw{} \mid \myxa{}, \myxv{}\right)$ decomposes as the product of four terms: $$\small \hspace{-.5cm} q\_\phi\left(\myw{} \mid \myxa{}, \myxv{}\right) \times \boxed{ q\_\phi\left(\myzav{}\mid \myxa{}, \myxv{}, \myw{} \right) } \times q\_\phi\left(\myza{} \mid \myxa{}, \myzav{}, \myw{}\right) \times q\_\phi\left(\myzv{} \mid \myxv{}, \myzav{}, \myw{}\right).$$ --- class: middle count: false .center.width-100[] The inference model $\small q\_\phi\left(\myzav{},\myza{},\myzv{}, \myw{} \mid \myxa{}, \myxv{}\right)$ decomposes as the product of four terms: $$\small \hspace{-.5cm} q\_\phi\left(\myw{} \mid \myxa{}, \myxv{}\right) \times q\_\phi\left(\myzav{}\mid \myxa{}, \myxv{}, \myw{} \right) \times \boxed{ q\_\phi\left(\myza{} \mid \myxa{}, \myzav{}, \myw{}\right) } \times \boxed{ q\_\phi\left(\myzv{} \mid \myxv{}, \myzav{}, \myw{}\right) }. $$ --- class: middle count: false .center.width-100[] The inference model $\small q\_\phi\left(\myzav{},\myza{},\myzv{}, \myw{} \mid \myxa{}, \myxv{}\right)$ decomposes as the product of four terms: $$\small \hspace{-.5cm} q\_\phi\left(\myw{} \mid \myxa{}, \myxv{}\right) \times q\_\phi\left(\myzav{}\mid \myxa{}, \myxv{}, \myw{} \right) \times { q\_\phi\left(\myza{} \mid \myxa{}, \myzav{}, \myw{}\right) } \times { q\_\phi\left(\myzv{} \mid \myxv{}, \myzav{}, \myw{}\right) }. $$ - Temporal dependencies are not detailed. - Gaussian distributions parametrized by neural networks taking conditioning variables as input. --- class: middle count: false .center[ # Multimodal dynamical VAE (MDVAE) ] <br> - Generative model - Inference model - .bold[Training] --- class: middle ## MDVAE training .grid[ .kol-3-5[ - The MDVAE model is trained on the **MEAD** dataset<br>.small[(K. Wang et al., 2020)]: - 30 hours of expressive audiovisual speech; - 48 speakers; - 8 emotions with 3 levels of intensity. - The objective function is the ELBO, as in standard VAEs. - **2-stage training** approach using vector quantized VAEs (VQ-VAEs) .small[(van den Oord et al., 2017)]. ] .kol-2-5[ .center.width-100[] .center[.small[Image credits: (K. Wang et al., 2020)]] ] ] .credit[ K. Wang et al., MEAD: A Large-scale Audio-visual Dataset for Emotional Talking-face Generation, ECCV, 2020 <br> A. van den Oord et al., Neural discrete representation learning, NeurIPS 2017.] --- class: middle ## 1st training stage .center[We learn a VQ-VAE model independently for **each modality** and without **temporal modeling**.] .vspace[ ] .center.width-100[] --- class: middle ## 2nd training stage .center[We then learn the MDVAE model **"inside" the frozen VQ-VAEs**, using as input the compressed representations of the VQ-VAEs before quantization.] .vspace[ ] .center.width-100[] .center[The use of VQ-VAEs improves the reconstruction quality and speeds up the training.] --- class: middle count: false .center[ # Experiments on audiovisual speech ] <br> - .bold[Audiovisual speech manipulations] - Audiovisual facial image denoising - Audiovisual speech emotion recognition --- class: middle ## Qualitative analysis of the learned representations - We want to study what characteristics of the audiovisual speech data are encoded in the latent variables $\myw{}$, $\myzav{}$, $\myzv{}$, and $\myza{}$. - We will reconstruct an audiovisual speech sequence using some of the latent variables from another sequence. .small-vspace[ ] .center.width-90[] --- class: middle, center .grid[ .kol-1-2[ We transfer $\myzav{}$ from the central sequence in red to the surrounding sequences. .center[ <video controls width="450" loop autoplay muted> <source src="demo/mosaic/z_av.mp4" type="video/mp4"> </video> ] Lip and jaw movements are transfered. ] .kol-1-2[ We transfer $\myzv{}$ from the central sequence in red to the surrounding sequences. .center[ <video controls width="450" loop autoplay muted> <source src="demo/mosaic/z_visual.mp4" type="video/mp4"> </video> ] Head and eyelid movements are transfered. ] ] --- class: middle, center .small-nvspace[ ] <!-- We transfer $\myzav{}$ and $\myzv{}$ from the central sequence in red to the surrounding sequences. The identity and global emotional state are preserved because $\myw{}$ is unaltered. --> We change $\myw{}$ of the central sequence to obtain the surrounding sequences. .center[ <video controls width="650" loop autoplay muted> <source src="demo/swap_w_visual.mp4" type="video/mp4"> </video> ] <!-- .alert[$\myw{}$ only encodes the identity and global emotional state. <br>All other dynamical factors (lip movements, head movements, eye blinks) are well preserved.] --> --- class: middle .center[Interpolation of the static audiovisual latent variable $\myw{}$] .grid[ .kol-1-2[ .center[ <video controls width="400" loop autoplay muted> <source src="demo/interpolation/identity_interpolation.mp4" type="video/mp4"> </video> ] .caption[Same emotion, different identities.] ] .kol-1-2[ .center[ <video controls width="400" loop autoplay muted> <source src="demo/interpolation/emotions_interpolation.mp4" type="video/mp4"> </video> ].caption[Same identity, different emotions.] ] ] $$ \small \hspace{-.5cm} p\_\theta\left(\myxv{} \mid \myzav{},\myzv{},\myw{}\right) = \prod\_{t=1}^T p\_\theta\left(\myxv{t} \mid \myzav{t},\myzv{t},\boxed{\tilde{\myw{}}\_t}\right), \hspace{.3cm} \tilde{\myw{}}\_t = \alpha\_t \myw{} + (1- \alpha\_t) \myw{}', \hspace{.3cm} \alpha\_t = (T-t)/(T-1). $$ --- class: middle - The qualitative analysis confirmed that: - The static audiovisual latent variable $\myw{}$ encodes the speaker's identity and global emotional state. - The dynamical audiovisual latent variable $\myzav{}$ encodes the speaker's lip and jaw movements. - The dynamical visual latent variable $\myzv{}$ encodes the remaining facial movements such as the eyes and head movements. - These conclusions are confirmed quantitatively by measuring the impact of swapping latent variables on the action units (cf. paper). --- class: middle count: false .center[ # Experiments on audiovisual speech ] <br> - Audiovisual speech manipulations - .bold[Audiovisual facial image denoising] - Audiovisual speech emotion recognition --- class: middle - We artificially **corrupt the visual modality** by adding random Gaussian noise on localized regions of the 6 central frames of a 10 frame-long sequence. The **audio modality is unaltered**. .center.width-70[] - The task is to reconstruct the visual modality. - We compare three different VAE-based models: - .bold[VQ-VAE] .small[(van den Oord et al., 2017)]: unimodal, without temporal modeling. - .bold[DSAE] .small[(Li and Mandt, 2018)]: unimodal, with temporal modeling, trained in two stages. - .bold[MDVAE]: multimodal, with temporal modeling. .alert[Denoising is done by simply encoding and decoding the corrupted (audio)visual speech sequence.] .credit[Y. Li and S. Mandt, "Disentangled sequential autoencoder", ICML 2018.] --- class: middle, black-slide .center.width-100[] --- class: middle .grid[ .kol-3-5[ .center.width-95[] ] .kol-2-5[ <br> - Results are obtained by averaging over 200 test sequences. - Metrics are computed on the corrupted region. .small-vspace[ ] .alert-90[ The performance gap between MDVAE and the unimodal baselines is larger for the corruption of the mouth region. This is because MDVAE exploits the audio modality.] ] ] --- class: middle count: false .center[ # Experiments on audiovisual speech ] <br> - Audiovisual speech manipulations - Audiovisual facial image denoising - .bold[Audiovisual speech emotion recognition] --- class: middle - The qualitative analysis of the latent representations learned by MDVAE suggests that the static audiovisual latent variable $\myw{}$ encodes the speaker's emotion. - We use the **mean vector of the Gaussian inference model** $q\_\phi\left(\myw{} \mid \myxa{}, \myxv{}\right)$ as the input of a **multinomial logistic regression model** trained for emotion classification on the MEAD dataset (8 classes). - The mean vector is simply obtained by a forward through the encoder network corresponding to $q\_\phi\left(\myw{} \mid \myxa{}, \myxv{}\right)$. - We compare the performance of MDVAE with its **unimodal counterparts**: - .bold[A-DSAE] relies on the audio-only inference model $q\_\phi\left(\myw{} \mid \myxa{}\right)$; - .bold[V-DSAE] relies on the visual-only inference model $q\_\phi\left(\myw{} \mid \myxv{}\right)$. --- class: middle .center.width-80[] - Using the exact same experimental protocol, MDVAE outperforms its two unimodal counterparts by about 50% of accuracy. - With less than 10% of the labeled data, MDVAE reaches 90% of its maximal performance. --- class: middle .grid[ .kol-2-3[ - We also evaluate the audiovisual emotion classification performance on **RAVDESS** .small[(Livingstone and Russo, 2018)]. - MDVAE is **fine-tuned** in an **unsupervised** manner on RAVDESS, **only the logistic regression model is supervised** (680 parameters). - MDVAE is compared with a SOTA method based on an audiovisual transformer model .small[(Chumachenko et al., 2022)]. It uses a **strong EfficientFace backbone** for image feature extraction, pre-trained on AffectNet, the largest dataset of in-the-wild facial images labeled in emotions. ] .kol-1-3[ .center.width-100[] .center.small[Credits: (Chumachenko et al., 2022)] ] ] .credit[ S.R Livingstone and F.A. Russo, "The Ryerson Audio-Visual Database of Emotional Speech and Song (RAVDESS): A dynamic, multimodal set of facial and vocal expressions in North American English", PloS one, 2018.<br> K. Chumachenko et al., "Self-attention fusion for audiovisual emotion recognition with incomplete data", IEEE ICPR, 2022. ] --- class: middle <style type="text/css"> .tg {border-collapse:collapse;border-color:#ccc;border-spacing:0;} .tg td{background-color:#fff;border-color:#ccc;border-style:solid;border-width:0px;color:#333; font-family:Arial, sans-serif;font-size:20px;overflow:hidden;padding:10px 5px;word-break:normal;} .tg th{background-color:#f0f0f0;border-color:#ccc;border-style:solid;border-width:0px;color:#333; font-family:Arial, sans-serif;font-size:20px;font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;} .tg .tg-2t70{border-color:#ffffff;font-size:20px;text-align:center;vertical-align:middle} .tg .tg-2t71{border-color:#ffffff;font-size:20px;text-align:center;vertical-align:middle} .tg .tg-y6or{border-color:#ffffff;font-size:20px;font-weight:bold;text-align:center;vertical-align:middle} </style> <table class="tg"> <thead> <tr> <th class="tg-2t70"></th> <th class="tg-2t70">Accuracy (%)</th> <th class="tg-2t70">F1 score (%)</th> </tr> </thead> <tbody> <tr> <td class="tg-2t70">Audiovisual transformer <font size="-1">(Chumachenko et al., 2022)</font></td> <td class="tg-2t71">79.2</td> <td class="tg-2t71">78.2</td> </tr> <tr> <td class="tg-2t70">MDVAE + logisitic regression </td> <td class="tg-y6or">79.3</td> <td class="tg-y6or">80.7</td> </tr> </tbody> </table> .vspace[ ] - MDVAE obtains competitive results even though it only contains 680 parameters learned using emotion labels ↪ confirms the effectiveness of the static audiovisual representation $\myw{}$. - The supervised AV transformer could not be easily trained on RAVDESS and MEAD due to label mismatch, which further shows the interest of unsupervised representation learning. --- class: middle # Conclusion - We proposed the MDVAE model to learn **structured representations of multimodal and dynamical data**. - The key to learn a meaningful representation was to structure the probabilistic generative model using different latent variables to encode different characteristics of the data. - Experiments on audiovisual speech have shown that **the model effectively disentangles static and dynamical information** as well as **audiovisual and modality-specific information**. - The **same model** was used for different generation and recognition tasks (audiovisual speech manipulations, audiovisual facial image denoising, audiovisual speech emotion recognition). --- class: middle count: false .center[ # Thank you! ] .big-vspace[ ] .footnote[ Sadok, S., Leglaive, S., Girin, L., Alameda-Pineda, X., & Séguier, R. (2024). A multimodal dynamical variational autoencoder for<br> audiovisual speech representation learning. Neural Networks, 172, 106120. - .bold[arXiv]: https://arxiv.org/pdf/2305.03582.pdf - .bold[Code]: https://github.com/samsad35/code-mdvae - .bold[Demo]: https://samsad35.github.io/site-mdvae/ ]
